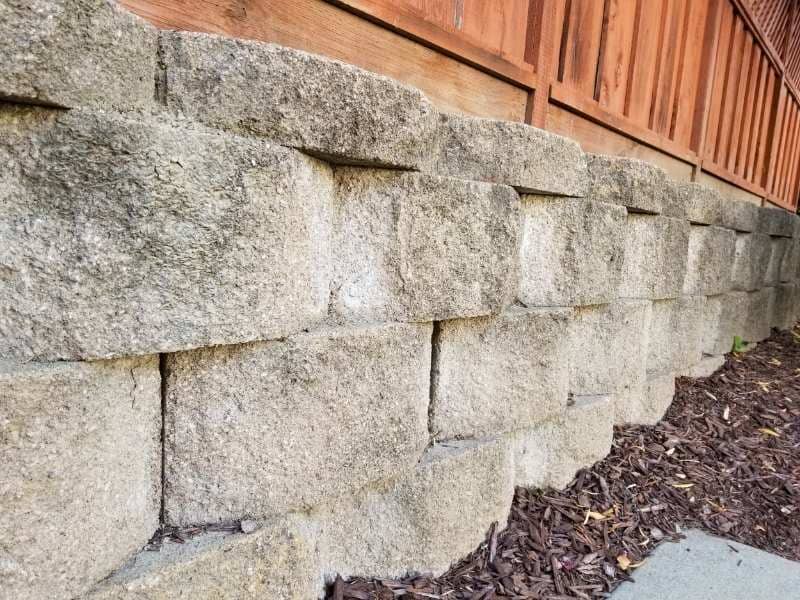

A retaining wall does more than hold back dirt, and a topographic survey is how you prove it. Built to level a yard or carve out a driveway, a wall also reshapes the way water travels between two properties. What used to soak into a gentle slope may now run along the base of the wall and pour out at one end onto a neighbor. When a complaint follows, opinions fly, and measured elevations are the only thing that settles the matter with facts. The rain gets the blame, and the ground tells the truth.

The wall is easy to blame and hard to read without numbers. A survey records the ground on both sides, the drains through it and the grade it interrupted. That record shows what the structure actually does to the flow, which is where any fair discussion has to begin. Photos and memories fade and argue with each other, while a set of elevations does not.

Recording Both Sides of the Wall Instead of the Wall Alone

A wall means little measured by itself. Its effect lives in the ground it separates, so the survey has to capture top and bottom elevations, grade shots on each side, the ends where it returns and the surfaces that meet it. Reading only the wall would miss the whole point. The dirt on either side is where the real story hides.

Both sides tell the story together. The high side shows where water gathers before the wall stops it, and the low side shows where that water finally goes. When the crew ties all of these to one elevation, the wall stops being a mystery and becomes a measured part of the slope, with a clear before and after built into the numbers. An engineer reading the drawing can then see the drop across the wall at a glance, without setting foot on the site.

Mapping Drainage Openings and Discharge Points

Walls are full of small outlets, and those outlets decide a lot. Weep holes, wall drains, pipes and channels let water escape from behind the structure, and each one sends flow somewhere. Where that somewhere is can turn a dry neighbor into a wet one. The wall may look innocent while its drains do all the work.

The survey locates every opening and the point where its water lands. A single pipe at the low end of a wall can concentrate a whole yard of runoff into one stream. Mapping these discharge points shows whether the wall spreads water gently or dumps it in a spot that was never meant to take it. That distinction often sits at the center of the dispute. One relocated outlet is sometimes all it takes to move a wet problem from one yard to the next.

Reconstructing the Grade Transition Before and After the Structure

A wall interrupts a slope, and the shape of that interruption tells you what the water does. By reading the surrounding grades, the survey reconstructs how the ground fell before the wall existed and how it falls now. That comparison reveals whether water gets caught, turned aside or trapped against the structure. Each of those outcomes lands the water in a different place.

The surrounding surface is the tell. If the grade behind the wall now tilts toward one corner, water follows it there. If a low pocket sits at the base with no way out, water pools and stays. Reading the transition in measured shots, rather than by eye, gives an engineer the picture needed to judge how the wall rerouted the flow. The eye tends to read a slope wrong, especially on ground that has already been reshaped once.

Checking Nearby Buildings and Low Openings

Redirected water goes looking for a way in, and buildings offer plenty. Doors, garage thresholds, foundations, patios and low openings all sit at heights that matter once the flow changes course. A wall that sends water toward a house can put a threshold under water in a hard rain. A few inches of grade near a doorway decides whether the room stays dry.

So the survey locates these vulnerable points and ties them to the same elevations as the wall and the ground. Knowing that a garage slab sits two inches below the new flow path is the kind of fact that drives a fix. Without it, a homeowner only knows the garage floods, not why or by how much. Those two answers, the why and the how much, are exactly what a repair has to work from.

Supplying Measurements Without Assigning Legal Fault

A survey measures. It does not judge. The drawing shows elevations, drains, grades and flow paths as they exist, and it stops there. Deciding who is responsible for a drainage problem falls to engineers, attorneys or public officials, not to the person holding the level.

Keeping that line clear protects everyone. The survey gives all sides the same trustworthy set of facts to argue from, which often cools a heated dispute. Whether the wall was built wrong, permitted poorly or simply unlucky is a separate question. The measurements answer what is happening, and others answer what to do about it. That split keeps the survey trustworthy, since a drawing that took sides would be worth far less to the people who have to weigh the case.
